omrd4c1620
OMRON CANADA INC. D4C1620 SMALL LIMIT SWITCH/UL
omrd4c1620
OMRON CANADA INC. D4C1620 SMALL LIMIT SWITCH/UL
Price
$231.00
/ EA
Inventory
13for delivery
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:D4C1620
Description

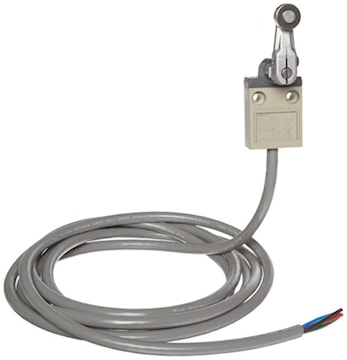

Compact enclosed limit switch, roller lever, 5 A 250 VAC, 4 A 30 VDC, 3m SJT(O) cable
Specifications
| Brand Name | Omron | Item Name | Safety Limit Switch |
| Type | General-Purpose | Actuator | Roller Lever |
| Voltage Rating | 250 VAC, 30 VDC | Contact Configuration | SPDT |
| Number of Poles | 1 | Travel | 25° Pretravel, 40° Overtravel |
| Dimensions | 40 mm W x 16 mm D x 102.7 mm H | Series/Model | D4C |
| Amperage Rating | 5 A at 250 VAC, 4 A at 30 VDC | Cable Length | 3 m |
| Operating Cycles | 10000000 Mechanical, 200000 Electrical | Mounting Type | Front |
| Degree of Protection | IP67 | Temperature Rating | -10 to 70 °C |
| Environmental Conditions | 35 - 95% Humidity, 10 - 55 Hz Vibration, 1000 m/s² Destruction Shock, 500 m/s² Malfunction Shock | Standards | CSA C22.2 No. 14, CCC (CQC) GB/T14048.5, TUV EN60947-5-1, UL508 |
| UPC | 612647100522 |
Packages
| 1 - rarr_unit_1 |
