Manufacturer:OMRON CANADA INC.
Manufacturer #:D4C1602
Description

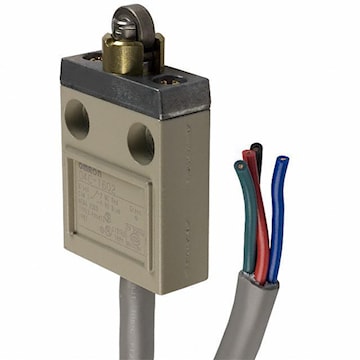

Compact enclosed limit switch, roller plunger, 5 A 250 VAC, 4 A 30 VDC, 3m SJT(O) cable
Specifications
| Brand Name | Omron | Item Name | Safety Limit Switch |
| Type | General-Purpose | Actuator | Roller Plunger |
| Voltage Rating | 250 VAC, 30 VDC | Contact Configuration | SPDT |
| Travel | 1.8 mm Pretravel, 3 mm Overtravel | Dimensions | 40 mm W x 16 mm D x 67 mm H |
| Series/Model | D4C | Amperage Rating | 5 A at 250 VAC, 4 A at 30 VDC |
| Cable Length | 3 m | Operating Cycles | 10000000 Mechanical, 200000 Electrical |
| Mounting Type | Front | Degree of Protection | IP67 |
| Temperature Rating | -10 to 70 °C | Environmental Conditions | 35 - 95% Humidity, 10 - 55 Hz Vibration, 1000 m/s² Destruction Shock, 500 m/s² Malfunction Shock |
| Standards | CSA C22.2 No. 14, CCC (CQC) GB/T14048.5, TUV EN60947-5-1, UL508 | UPC | 612647100520 |
