omrd4b2a16n
OMRON CANADA INC. D4B2A16N D4B-2A16N
omrd4b2a16n
OMRON CANADA INC. D4B2A16N D4B-2A16N
Price
$106.00
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:D4B2A16N
Description

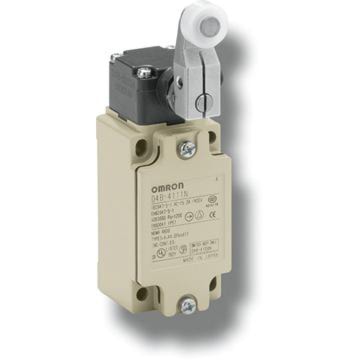

Safety Limit Switch with G1/2 1-conduit, 2NC slow action and adjustable roller lever actuator. Robust safety limit switch with metal housing. Safety of lever settings ensured using a mechanism that engages a gear between the operating position indicator plate and the lever. Equipped with a mechanism that indicates the applicable operating zone, as well as push-button switching to control left and right motion.
Specifications
| Brand Name | Omron | Item Name | Safety Limit Switch |
| Actuator | Adjustable Roller Lever | Voltage Rating | 600 V |
| Contact Configuration | DPDB, 2 NC | Travel | 21° Pretravel, 50° Overtravel |
| Dimensions | 43 mm W x 40 mm D x 99.5 mm H | Series/Model | D4B-N |
| Action | Slow | Amperage Rating | 180 mA |
| Conductor Size | 20-14 AWG | Operating Cycles | 10000000 Mechanical, 500000 Electrical |
| Mounting Type | Screw | Degree of Protection | IP67 |
| Connection Type | G1/2 Conduit | NEMA Rating | NEMA 3, 4, 4X, 6P, 13 |
| Temperature Rating | -40 to 80 °C | Environmental Conditions | 10 - 55 Hz Vibration, 95% Humidity, 1000 m/s² Shock (Destruction), 300 m/s² Shock Malfunction |
| Standards | TUV Rheinland, UL508, CSA C22.2 No. 14, CQC (CCC) | UPC | 612647105225 |
Packages
| 1 - rarr_unit_1 |
