omrd4b2116n
OMRON CANADA INC. D4B2116N D4B-2116N
omrd4b2116n
OMRON CANADA INC. D4B2116N D4B-2116N
Price
$125.00
/ EA
Inventory
3for delivery
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:D4B2116N
Description

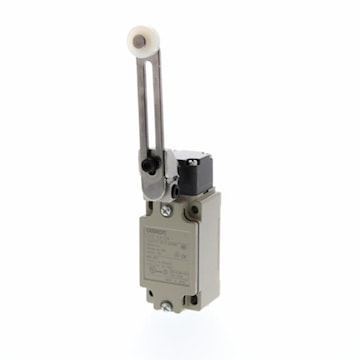

Limit switch, adjustable roller lever, SPDB NO/NC, snap action, 10 A
Specifications
| Brand Name | Omron | Item Name | Safety Limit Switch |
| Actuator | Adjustable Roller Lever | Voltage Rating | 600 V |
| Contact Configuration | SPDB, 1 NC, 1 NO | Travel | 21° Pretravel, 50° Overtravel |
| Dimensions | 43 mm W x 40 mm D x 99.5 mm H | Series/Model | D4B-N |
| Action | Snap | Amperage Rating | 180 mA |
| Conductor Size | 20-14 AWG | Operating Cycles | 30000000 Mechanical, 500000 Electrical |
| Mounting Type | Screw | Degree of Protection | IP67 |
| Connection Type | G1/2 Conduit | NEMA Rating | NEMA 3, 4, 4X, 6P, 13 |
| Temperature Rating | -40 to 80 °C | Environmental Conditions | 10 - 55 Hz Vibration, 95% Humidity, 1000 m/s² Shock (Destruction), 300 m/s² Shock Malfunction |
| Standards | TUV Rheinland, UL508, CSA C22.2 No. 14, CQC (CCC) | UPC | 612647105229 |
Packages
| 1 - rarr_unit_1 |
