pil540000
pil540000

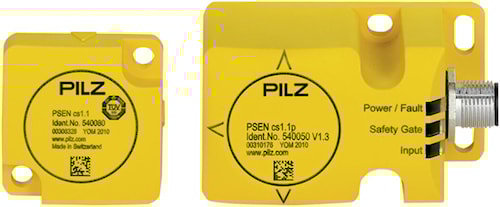

PILZ AUTOMATION SAFETY CANADA 540000 RFID SAFETY SW 4 DIR8PIN M12 21MMSD

Inventory
Unavailable for order
Manufacturer:PILZ AUTOMATION SAFETY CANADA
Manufacturer #:540000
Documents Documents

Description

RFiD safety switch 2 safe SC outputs, 8-pin M12 male connector, 4 actuation directions, support for SDD, IP67, switching distance 21 mm, Sao = 15 mm, Sar = 40 mm, PU = 1 piece coded switch with actuator.

Specifications

Brand Name Pilz Item Name RFID Safety Switch
Type Transponder Voltage Rating 24 VDC
Frequency Rating 122 - 128 kHz Wattage 1 W
Connection Type 8-Pin M12 Connector Enclosure Type IP67
Material Polybutylene Terephthalate Dimensions 40 mm W x 40 mm D x 75 mm H
Standards CE Certified, cULus Listed, FCC Certified, IC, EAC (Eurasian), TUV Approved, UKCA
