omrd4nl4edgb4npt
OMRON CANADA INC. D4NL4EDGB4NPT D4NL-4EDG-B4-NPT
omrd4nl4edgb4npt
OMRON CANADA INC. D4NL4EDGB4NPT D4NL-4EDG-B4-NPT
Price
$418.00
/ EA
Inventory
Available for backorder
2for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:D4NL4EDGB4NPT
Description

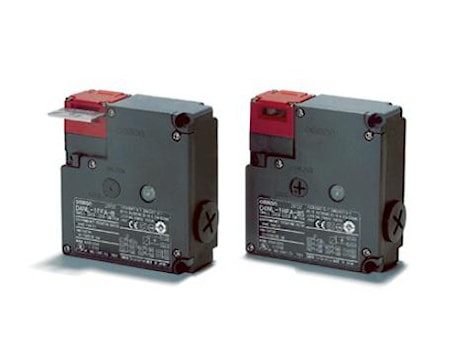

Guard Lock Safety-door Switch with 1/2 inch 14 NPT conduit, four mounting directions, plastic head, bottom release key position, special resin release key type, 24 VDC solenoid voltage, orange LED: 10 to 115 VAC/VDC indicator, 24 VDC solenoid lock mechanical release and 2NC/1NO + 1NC/1NO contact configuration. Key holding force of 1300 N minimum. It can be used for either standard loads or microloads.
Specifications
| Brand Name | Omron | Item Name | Guard Lock Safety Door Switch |
| Type | Mechanical Release, Solenoid Lock | Contact Form | 2 NC/1 NO, 1 NC/1 NO |
| Series | D4NL | Voltage Rating | 10 - 115 VAC/VDC |
| Amperage Rating | 1 mA | Frequency Rating | 50/60 Hz |
| Connection Type | M20 | Enclosure Type | IP67 |
| Material | Plastic | Dimensions | 88.5 mm W x 35.5 mm D x 95 mm H |
| Standards | TUV SUD, UL508, CSA C22.2 No. 14, CQC (CCC), KOSHA | UPC | 612647105293 |
Packages
| 1 - rarr_unit_1 |
