omrd40plmc2105
OMRON CANADA INC. D40PLMC2105 LONG,SUS,2NC/1NO,5M
omrd40plmc2105
OMRON CANADA INC. D40PLMC2105 LONG,SUS,2NC/1NO,5M
Price
$382.00
/ EA
Inventory
1for delivery
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:D40PLMC2105
Description

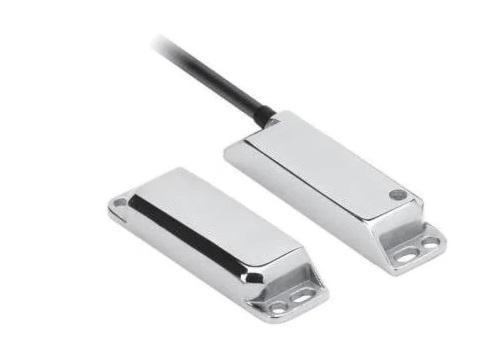

Hall Effect Coded Magnet Non-contact Safety Switch with stainless steel housing, elongated sensors, 5 m pre-wired cable connection and 2NC 1NO contact configuration.
Specifications
| Brand Name | Omron | Item Name | Safety Interlock Switch with Elongated Sensor |
| Type | Hall Effect Coded Magnet, Non-Contact | Contact Rating | 0.2 A |
| Contact Form | 2 NC, 1 NO | Cable Length | 5 m |
| Series | D40P | Voltage Rating | 24 VDC |
| Frequency Rating | 1 Hz | Connection Type | Pre-Wired |
| Enclosure Type | IP69K | Material | Stainless Steel |
| Dimensions | 88 mm L x 25 mm W x 14 mm H | Standards | EN Standards Certified by TUV Rheinland: EN ISO13849-1, EN 60204-1, EN ISO 14119 (Type 4 Interlocking Device), EN/IEC 60947-5-3, UL 508, CSA C22.2, CE Certified, cULus Listed |
| UPC | 612647230083 |
