OMRON CANADA INC. D40PMPC21M12L MINI,PLAST,2NC/1NO,M12,LEFT
omrd40pmpc21m12l
OMRON CANADA INC. D40PMPC21M12L MINI,PLAST,2NC/1NO,M12,LEFT
Price
$318.00
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:D40PMPC21M12L
Description

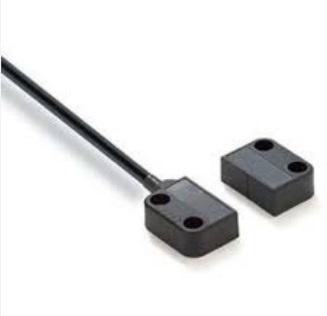

Hall Effect Coded Magnet Non-contact Safety Switch with polyester housing, miniature sensors, M12, 8 pin, fitted with 250 mm cable, exit left connection and 2NC 1NO contact configuration.
Specifications
| Brand Name | Omron | Item Name | Safety Interlock Switch with Miniature Sensor |
| Type | Hall Effect Coded Magnet, Non-Contact | Contact Rating | 0.2 A |
| Contact Form | 2 NC, 1 NO | Cable Length | 250 mm |
| Series | D40P | Voltage Rating | 24 VDC |
| Frequency Rating | 1 Hz | Connection Type | 8-Pin M12 Connector |
| Enclosure Type | IP67 | Material | Polyester |
| Dimensions | 41 mm L x 26 mm W x 13 mm H | Color | Black |
| Standards | EN Standards Certified by TUV Rheinland: EN ISO13849-1, EN 60204-1, EN ISO 14119 (Type 4 Interlocking Device), EN/IEC 60947-5-3, UL 508, CSA C22.2, CE Certified, cULus Listed | UPC | 612647230102 |
