hubhbl7310bg

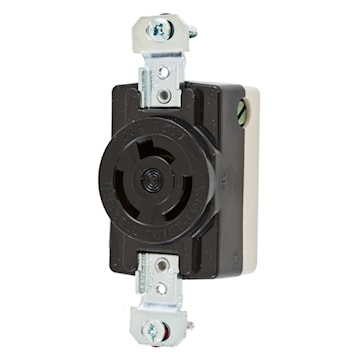

HUBBELL CANADA ULC HBL7310BG Twist-Lock® Heavy Duty Locking Single Receptacle 20 A, Non-NEMA Black
hubhbl7310bg
HUBBELL CANADA ULC HBL7310BG Twist-Lock® Heavy Duty Locking Single Receptacle 20 A, Non-NEMA Black
Price
$67.71
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL7310BG
Description
Hubbell TWIST-LOCK cable plugs and connectors are made of white nylon locking blade insert, black housing and 2 pieces screw cable clamp. Flanged inlet and outlet are made of white one-piece nylon. Box single/duplex receptacle are made of black or orange (isolated) thermoplastic. Full line of accessories like stainless steel and weatherproof cover plate. They follow NEMA and NON-NEMA lock coding version 1-2-3-4 pole, 20-30-50 amp, 125-250-277-347-480-600 volts.
High-impact, abuse-resistant nylon face
Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Face color coding by voltage facilitates locating and mating of proper devices
All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock® |
| Item Name | Locking Single Receptacle | Type | Heavy Duty |
| Grade | Industrial | Size | 3.61 in x 1.39 in x 1.28 in |
| Voltage Rating | 250 V | Amperage Rating | 20 A |
| Wattage | 5000 W | Number of Poles | 2 |
| Number of Wires | 3 | NEMA Rating | Non-NEMA |
| Conductor Size | 12 - 10 AWG | Material | Composite |
| Color | Black | Phase | 1 |
| Terminal Connection | Screw Terminal | Dielectric Strength | Withstands 2,000V minimum |
| Grounding | Grounding | Mounting Type | Screw, Flush, Inner Lying |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means | Standards | UL 498 |
| Application | Heavy Duty Industrial | UPC | 783585333649 |
