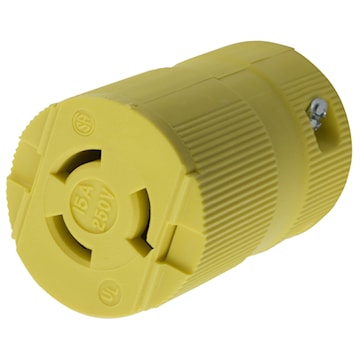

HUBBELL CANADA ULC HBL4579VY Twist-Lock®, Valise® Insulated Locking Connector 15 A, L6-15R Yellow
hubhbl4579vy
HUBBELL CANADA ULC HBL4579VY Twist-Lock®, Valise® Insulated Locking Connector 15 A, L6-15R Yellow
Price
$54.95
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL4579VY
Description
Hubbell VALISE twist-lock cable plugs and connectors are made of one piece yellow thermoplastic locking blade insert and cover that hold securely the cable with 2 screws (full black model available). Available in black or white; they follow NEMA lock coding version 2-3 pole, 20-30 amp, 125-250 volts.
Two captive multiple drive assembly screws
Totally insulated impact and crush resistant nylon body
Powerful cord grips prevent conductor slippage and strain on wiring terminals
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Valise® |
| Item Name | Locking Connector | Type | Insulated |
| Size | 1.50 in x 1.50 in x 2.59 in | Voltage Rating | 250 V |
| Amperage Rating | 15 A | Number of Poles | 2 |
| Number of Wires | 3 | NEMA Configuration | L6-15R |
| NEMA Rating | L6-15R | Conductor Size | 14 - 12 AWG |
| Material | Composite | Color | Yellow |
| Terminal Connection | Pressure Screw Terminal | Grounding | Grounding |
| Mounting Type | Cord | Temperature Rating | -40 to 75 °C without Impact, -25 to 75 °C with Impact |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means | Standards | NEMA WD-1 and WD-5, UL 498 |
| Application | Heavy Duty Industrial | UPC | 783585236674 |
