hubhbl2653

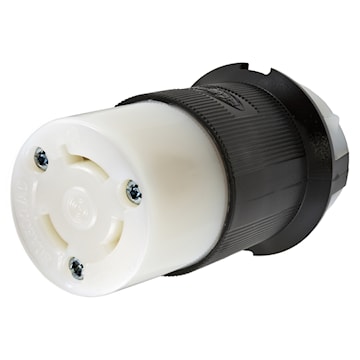

HUBBELL CANADA ULC HBL2653 Twist-Lock®, Insulgrip® Locking Connector Female, Standard 30 A, 600 VAC, 2 Ports 3 Conductors Black and White
hubhbl2653
HUBBELL CANADA ULC HBL2653 Twist-Lock®, Insulgrip® Locking Connector Female, Standard 30 A, 600 VAC, 2 Ports 3 Conductors Black and White
Price
$184.57
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2653
Description
Hubbell INSULGRIP twist-lock cable plugs and connectors are made of white nylon locking blade insert, black ribbed grip housing and 2 pieces screw cable clamp (full black model available). They follow NEMA lock coding version 2-3 pole, 20-30 amp, 125-250-277-347-480-600 volts.
Superior cord grip design protects terminations from excess strain.
Clear, funnel shaped wire entry for ease of termination.
Integral dust shield protects wiring chamber from dust or contaminants.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Insulgrip® |
| Item Name | Locking Connector | Type | Female, Standard |
| Voltage Rating | 600 VAC | Amperage Rating | 30 A |
| Conductor Size | 12-8 AWG | Number of Conductors | 3 |
| Connection Type | Pressure Screw | Material | Composite |
| Color | Black and White | Number of Ports | 2 |
| Length | 2.26 in | Mounting | Cord Mounted |
| NEMA Rating | L9-30R | Temperature Rating | -25 to 75 °C with Impact, -40 to 75 °C without Impact |
| Standards | UL 498, NEMA WD-1, WD-5 | Application | Heavy Duty Industrial |
| UPC | 783585039053 |
