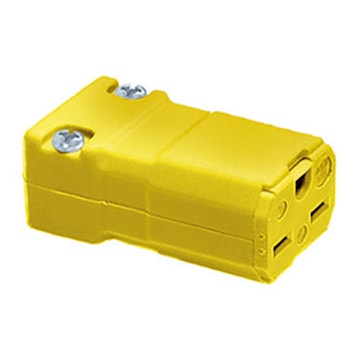

HUBBELL CANADA ULC HBL5669VY Valise® Straight Blade Female Connector Standard 15 A, 250 V, 2 Ports 3 Conductors Yellow
hubhbl5669vy
HUBBELL CANADA ULC HBL5669VY Valise® Straight Blade Female Connector Standard 15 A, 250 V, 2 Ports 3 Conductors Yellow
Price
$75.04
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL5669VY
Description
Valise connector body made of nylon with 2 pole, 3 wire grounding, 15 A, 250 V, 0.22-0.66 inch, IP20.
Hinged one piece body design for easy assembly
Powerful, offsetting cord grips clamp on individual conductors
Assembly screws are captive and will not fall out while wiring
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Valise® |
| Item Name | Straight Blade Female Connector | Type | Standard |
| Voltage Rating | 250 V | Amperage Rating | 15 A |
| Conductor Size | 14-12 AWG | Number of Conductors | 3 |
| Connection Type | Screw Terminal | Wattage | 3750 W |
| Material | Composite | Color | Yellow |
| Number of Ports | 2 | Length | 2.38 in |
| Mounting | Cord | NEMA Rating | 6-15R |
| Temperature Rating | -40 to 75 °C without Impact | Standards | UL 498, NEMA WD-1, WD-5 |
| Application | Industrial/Commercial | UPC | 783585013213 |
