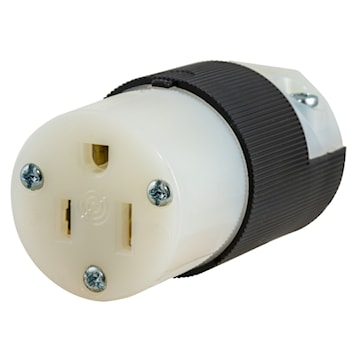

HUBBELL CANADA ULC HBL5269C Insulgrip® Straight Blade Female Connector Standard 15 A, 125 V, 2 Ports 3 Conductors Black and White
hubhbl5269c
HUBBELL CANADA ULC HBL5269C Insulgrip® Straight Blade Female Connector Standard 15 A, 125 V, 2 Ports 3 Conductors Black and White
Price
$60.62
/ EA
Inventory
7for delivery
7for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL5269C
Description
Insulgrip connector body made of nylon with 2 pole, 3 wire grounding, 20 A, 125 V, 0.23-0.72 inch, IP20.
Individual wiring terminals completely enclosed
Powerful, offsetting cord grips clamp on individual conductors
Fast lead assembly screws
Beveled housing prevents snagging
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Insulgrip® |
| Item Name | Straight Blade Female Connector | Type | Standard |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 14-12 AWG | Number of Conductors | 3 |
| Connection Type | Pressure Screw | Material | Composite |
| Color | Black and White | Number of Ports | 2 |
| Length | 2.65 in | Mounting | Cord Mounted |
| NEMA Rating | 5-15R | Temperature Rating | -40 to 75 °C without Impact |
| Standards | UL 498, NEMA WD-1, WD-5 | Application | Industrial/Commercial |
| UPC | 783585173252 |
