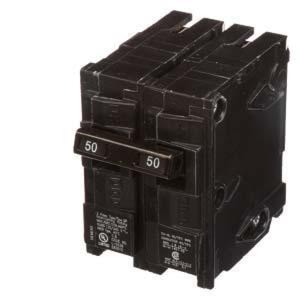

INTERNAL Q250 Molded Case Circuit Breaker Type QP 50 A, 2 P, Lug
Description
2-pole Plug-in (Common-Trip 120/240 VAC) circuit breaker provides Class A (5 mA) ground fault protection. Intended for personnel protection. Includes Self Test as an added safety feature.
Specifications
Brand Name | Siemens | Item Name | Molded Case Circuit Breaker |
Type | Type QP | Series | Q |
Number of Poles | 2 | Interrupt Rating | 10 kA at 120 VAC |
Amperage Rating | 50 A | Voltage Rating | 120 VAC, 240 VDC |
Terminal Connection | Lug | Mounting Type | Plug-In |
Phase | 1 | Frequency Rating | 60 Hz |
Conductor Size | 8-6 AWG Copper, 8-4 AWG Aluminum | Actuator | Toggle |
Frame | 125A/QP | Trip Type | Thermal Magnetic, Long Time and Instantaneous |
Dimensions | 2 in L x 3 in W x 3 in D | For Use With | Siemens EQ Load Centers |
Standards | UL Listed |
Packages
1 - rarr_unit_1 | 6 - rarr_unit_2 | 24 - rarr_unit_3 | 1440 - rarr_unit_4 |
